The MouseDown, MouseMove, and MouseUp routines do most of the work. MouseDown simply starts drawing and MouseUp ends it.

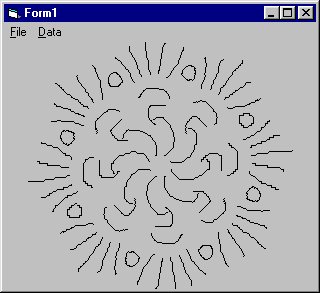

The MouseMove event handler draws your curve and its modified copies. It draws a line from the previous point (m_X, m_Y) to the mouse's current position. Then depending on the type of drawing (reflection, rotation, etc.) the program transforms the previous and current points and draws a line between them.

Private Sub Form1_MouseDown(ByVal sender As Object, ByVal e _
    As System.Windows.Forms.MouseEventArgs) Handles _
    MyBase.MouseDown
    m_X = e.X
    m_Y = e.Y
    m_Drawing = True
End Sub

Private Sub Form1_MouseMove(ByVal sender As Object, ByVal e _
    As System.Windows.Forms.MouseEventArgs) Handles _
    MyBase.MouseMove
    Dim i As Integer
    Dim angle As Double
    Dim dx1 As Integer
    Dim dy1 As Integer
    Dim dx2 As Integer
    Dim dy2 As Integer
    Dim x1 As Integer
    Dim y1 As Integer
    Dim x2 As Integer
    Dim y2 As Integer

    If Not m_Drawing Then Exit Sub

    Dim gr As Graphics = Me.CreateGraphics()
    gr.DrawLine(Pens.Black, m_X, m_Y, e.X, e.Y)
    Select Case m_CurrentStyle
        Case "Reflection X"
            gr.DrawLine(Pens.Black, 2 * m_Cx - m_X, m_Y, 2 _
                * m_Cx - e.X, e.Y)
        Case "Reflection Y"
            gr.DrawLine(Pens.Black, m_X, 2 * m_Cy - m_Y, _
                e.X, 2 * m_Cy - e.Y)
        Case "Reflection XY"
            gr.DrawLine(Pens.Black, 2 * m_Cx - m_X, m_Y, 2 _
                * m_Cx - e.X, e.Y)
            gr.DrawLine(Pens.Black, m_X, 2 * m_Cy - m_Y, _
                e.X, 2 * m_Cy - e.Y)
            gr.DrawLine(Pens.Black, 2 * m_Cx - m_X, 2 * _
                m_Cy - m_Y, 2 * m_Cx - e.X, 2 * m_Cy - e.Y)
        Case "Rotation 2"
            dx1 = m_X - m_Cx
            dy1 = m_Y - m_Cy
            dx2 = e.X - m_Cx
            dy2 = e.Y - m_Cy
            gr.DrawLine(Pens.Black, m_Cx - dx1, m_Cy - dy1, _
                m_Cx - dx2, m_Cy - dy2)
        Case "Rotation 4"
            dx1 = m_X - m_Cx
            dy1 = m_Y - m_Cy
            dx2 = e.X - m_Cx
            dy2 = e.Y - m_Cy
            gr.DrawLine(Pens.Black, m_Cx - dx1, m_Cy - dy1, _
                m_Cx - dx2, m_Cy - dy2)
            gr.DrawLine(Pens.Black, m_Cx - dy1, m_Cy + dx1, _
                m_Cx - dy2, m_Cy + dx2)
            gr.DrawLine(Pens.Black, m_Cx + dy1, m_Cy - dx1, _
                m_Cx + dy2, m_Cy - dx2)
        Case "Rotation 8"
            x1 = m_X
            y1 = m_Y
            x2 = e.X
            y2 = e.Y
            For i = 1 To 8
                gr.DrawLine(Pens.Black, x1, y1, x2, y2)
                RotatePointAround(m_Cx, m_Cy, PI / 4, x1, _
                    y1)
                RotatePointAround(m_Cx, m_Cy, PI / 4, x2, _
                    y2)
            Next i
        Case "Rotation Other"
            x1 = m_X
            y1 = m_Y
            x2 = e.X
            y2 = e.Y
            For i = 1 To CInt((2 * PI) / m_Angle)
                gr.DrawLine(Pens.Black, x1, y1, x2, y2)
                RotatePointAround(m_Cx, m_Cy, m_Angle, x1, _
                    y1)
                RotatePointAround(m_Cx, m_Cy, m_Angle, x2, _
                    y2)
            Next i
    End Select

    m_X = e.X
    m_Y = e.Y
End Sub

Private Sub Form1_MouseUp(ByVal sender As Object, ByVal e _
    As System.Windows.Forms.MouseEventArgs) Handles _
    MyBase.MouseUp
    m_Drawing = False
End Sub

' Rotate the point (X, Y) around the point (cx, cy) by the
' given angle.
Private Sub RotatePointAround(ByVal cx As Integer, ByVal cy _
    As Integer, ByVal angle As Double, ByRef X As Integer, _
    ByRef Y As Integer)
    Dim sin_angle As Double
    Dim cos_angle As Double
    Dim new_x As Double

    sin_angle = Sin(angle)
    cos_angle = Cos(angle)
    X = X - cx
    Y = Y - cy
    new_x = cx + X * cos_angle + Y * sin_angle
    Y = CInt(cy - X * sin_angle + Y * cos_angle)
    X = CInt(new_x)
End Sub
